BenQ SX930
Business Large Venue XGA Projector
Overview:
Keep the Lights On at Large Venues
The BenQ SX930 is the brightest choice for all your meetings. Light and compact with 7000 ANSI Lumens brightness and 2500:1contrast ratio, the BenQ SX930 offers superior viewing experience even in rooms with the lights on.
Key Features
- High Brightness 7000AL
- Big Zoom 1.6X
- Easy Installation and Control
- Vertical Lens Shift
Features:
Visual Excellence
7000 ANSI Lumens
No matter the conference room, with an astounding 7000 ANSI lumen bright image, the SX930 will always give you the best image clarity under the brightest lights! So, take advantage! Stay in control and enjoy perfect presentations and the best interactions with your audience!
XGA Native Resolution
The SX930 comes with XGA native resolution up to 1024 x 768. This brings you crisp and accurate images in your every presentation!
Convenient Control and Management
LAN Control for Centralized Projector Management
LAN Control enables IT personnel to perform day-to-day projector maintenance and repair tasks efficiently and effectively – offering them full access and control over every projector directly from their workstations. The SX930 offers seamless support for the Crestron and PJ-Link Control system.
Big Zoom for Extra Projector Installation Flexibility
SX930 1.6x big zoom feature opens up space with an impressively wide range of throw distances. All you have to do is simply place the new projector right where your original ceiling mount is. Without excessive projector installation or re-construction costs to your budget, you’ll get to save the money for better use.

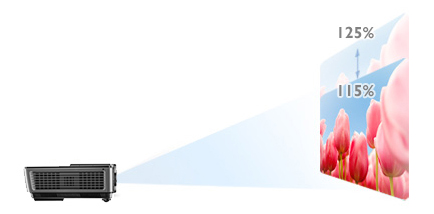

Lens Shift for Extra Room for Minor Miscalculations
Lens shift offers extra flexibility to overcome any minor miscalculations during projector installation. Provides the ability to move the image up or down on the screen, from 115%~125%. With this helpful feature, you’ll never have to worry about stacking items under the projector to land the image where you want it.
Outstanding Audio Performance
Built-in 20W Big Audio Power
The SX930 comes with a pair of built-in stereo speakers to help enrich your presentation with top quality images and sounds. The speakers are dampened within the projector housing by BenQ's anti-shake design to ensure projection stability at all times.
0.5W in Standby Mode
When inactive, the SX930 keeps power consumption to a minimum with 0.5W standby power, achieving what was once a challenge for earlier generations of projector models. This technological advancement in energy saving helps lower energy costs.
BenQ DLP Projectors with Long Lasting Picture Quality powered DLP Projection Technology
Digital Light Processing (DLP), awarded 2015 Academy Award of Merit (Oscar statuette), is the leading projection technology used in 90% of world’s digital cinemas and 100% of IMAX theaters. With DLP dominating the worldwide projector market with over 50% share, BenQ is today the #1 bestselling DLP projector brand, delivering unmatched world-class performance.
Colorific Technology Delivers Lifelike Color, Year After Year
BenQ uses Colorific technology to optimize images for specific color balance effects for diverse applications such as presentations, movies and spreadsheets and photographs. Every BenQ Colorific projector generates more than one billion colors by combining up to seven different colors to create vibrant, true to life images. You'll also experience dramatic contrasts for remarkable clarity, higher impact, and greater legibility. BenQ's Colorific projectors are dependable year after year. You can rely on the colors to remain the same from day one to a decade later--without the risk of fading, ghosted images, or yellowing.
- Accurate. Over 1 billion colors - compared to 16.7 million from many LCD projectors
- Crisp. Bright, high contrast picture - 3x more contrast than similar top-selling LCD models
- Long-Lasting. Consistent quality - image is the same now and years from now
Non-DLP Projector
BenQ DLP Projector
DLP Technology also includes a filter-free engine design for carefree confidence in long-lasting image quality and reduced TCO. BenQ’s SmartEco Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.
Razor-Sharp Clarity with Ultra-Readability
Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminishes color and detail. A higher fill factor and less black border translate into noticeably purer, more intense color and smoother image quality.
BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit room.
Vibrant True-to-Life Colors
Even in well-lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy. BrilliantColor technology additionally boosts true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with the primary Red, Blue, and Green colors. From intense hues to elusive mid-tones like aqua blues and light yellows, every presentation is rendered in pure, living splendor.
Image Gallery:
| BenQ SX930 Image Gallery | ||
|---|---|---|
 |
 |
 |
 |
 |
 |
|
 |
|
Specifications:
- LAN (RJ45)
- 8 USB (Type mini-B)
- USB (Type A)
- HDMI 2
- HDMI 1 / MHL
- Computer in (D-sub 15pin)
- RS232 (DB-9pin)
- S-Video in (Mini DIN 4pin)
- Audio L/R in (RCA)
- Audio In & Out (Mini Jack)
- Monitor out (D-sub 15pin)
- Composite Video in (RCA)
- Microphone in (Mini Jack)
| BenQ SX930 Specifications | |
|---|---|
| Model | SX930 |
| Projection System | DLP |
| Native Resolution | XGA (1024 x 768) |
| Brightness* (ANSI Lumens) | 7000AL |
| Contrast Ratio | 2500:1 |
| Display Color | 1.07 Billion Colors |
| Lens | F=2.1~2.63, f=21.7~34.64 |
| Aspect Ratio | Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio | 1.5~2.4 |
| Image Size (Diagonal) | 36"-300" |
| Zoom Ratio | 1.6X |
| Lamp Type | 465W |
| Lamp Mode (Normal/ Economic/ SmartEco/ LampSave/ LumenCare)* | 2000/2500 hours |
| Keystone Adjustment | 2D, Vertical & Horizontal ± 30 degrees |
| Projection Offset | 107.5% ±2.5% |
| Resolution Support | VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking |
| Horizontal Frequency | 15-102KHz |
| Vertical Scan Rate | 23-120Hz |
| Interface | Computer in (D-sub 15pin) x 1 (Share with component) Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 HDMI x 2 Audio in (Mini Jack) x 1 Audio L/R in (RCA) x 1 Audio out (Mini Jack) x 1 Microphone in (Mini Jack) x 1 Speaker 10W x 2 USB (Type A) x 1 (1.5A power supply) USB (Type mini B) x 1 (Download & page/down) LAN (RJ45) x 1 (LAN control) RS232 (DB-9pin) x 1 DC 12V Trigger (3.5mm Jack) x 1 IR Receiver x 2 |
| Dimensions (W x H x D mm) | 17.5” x 5.9” x 13.2” / 446 x 152 x 336 mm
|
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility | NTSC, PAL, SECAM |
| 3D Support and Compatibility | N/A |
| Weight | 14.7 lbs / 6.7 kgs |
| Audible Noise (Normal/Economic Mode) | 39/36 dBA (Normal/Economic mode) |
| Power Supply | AC100 to 240 V, 50 to 60 Hz |
| Power Consumption | Typical 620W, Network standby <6W Stanby power <0.5W |
| On-Screen Display Languages | Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages) |
| Picture Modes | Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2 |
| Accessories (Standard) | Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable |
| Accessories (Optional) | Spare Lamp Kit P/N: 5J.JEG05.001 Ceiling Mount P/N: 5J.JAM10.001 3D Glasses P/N: 5J.J9H25.001 Dust Filter P/N: 6E.JEG08.001 |
*Lamp life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
Documentation:
Download the BenQ SU931 and SX930 Data Sheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
