BenQ MW727
Projection Perfect for Every Occasion

Features:

Power saving, Eco friendly

World-Leading SmartEco Technology for a Greener Environment

As the first DLP brand to incorporate Philips' ImageCare technology into its projector lamp system, BenQ has taken a further leap, developing its own SmartEco Technology to perfect what DLP can do for energy saving in the 21st century classroom. Built with this brand new invention, the MW727 brings together uncompromised brightness, exquisite picture quality and optimized lamp life through innovative features.

Eco Blank Mode

The Eco Blank mode allows teachers to blank the projection screen whenever they need to direct their students' focus back on them – or simply when the projector is not in use. When activated, this special feature dims the lamp power automatically, lowering the total power consumption by 70%.

Full Power On
100% Lamp Power
Attention on the Projection Screen

Eco Blank Mode On
30% Lamp Power
at the Lowest Attention on the Class Instructor

SmartEco Mode

The SmartEco Mode, which cleverly adjusts the lamp power to maximize power saving by delivering the best contrast and brightness performance using only as much light as needed.

Normal Mode
296W Projector Power
Consumption by Average

SmartEco Mode
Enhanced Details in Darkened Scenes
163W Projector Power Consumption by Average

(Source: 2010 Philips white paper)

No Source Detected Mode

The projector will automatically switch to Eco Blank Mode after the projector is turned on for over three minutes without a display source, eliminating unnecessary energy waste and prolonging the life of the projector lamp.

Source Detected
100% Lamp Power

No Source Detected
30% Lamp Power

0.5W in Standby Mode

When inactive, the MW727 keeps power consumption to a minimum with <0.5W standby power, achieving what was once a challenge for earlier projector models. This technological advancement in energy saving helps lower energy costs.

Under 6W in Network Standby Mode

With the MW727 in Network Standby mode, it takes less than 6W to keep the MW727 connected to the network even after it’s powered off. IT managers can retain full control over the projector’s daily maintenance and repair tasks while saving a significant amount of the earth’s energy resources.

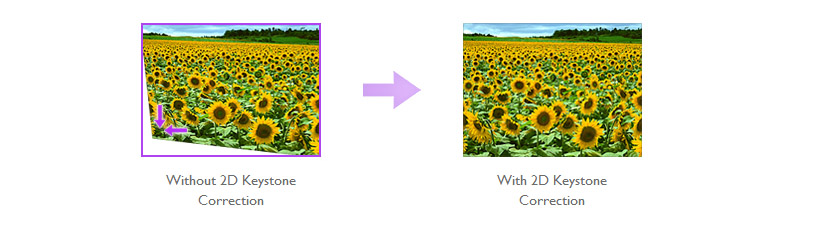

2D Keystone Correction

When the projector is placed off center, the 2D keystone correction feature gives you a greater projector installation flexibility by correcting the trapezoid effect using horizontal and vertical adjustments.

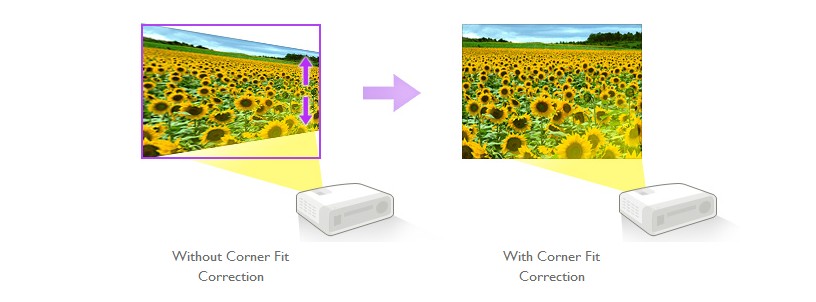

Corner Fit Correction

Corner Fit is a flexible and convenient way to correct picture dimensions by adjusting each corner of an image independently.

MHL Connectivity

With MHL connectivity, you can share content from your Android devices on big screen. MW727 features MHL function and allows you to mirror the data, photo and other contents from your android devices to big screen. Also, your connected device will charge while you're using it; you don't have to worry about the power while presenting.

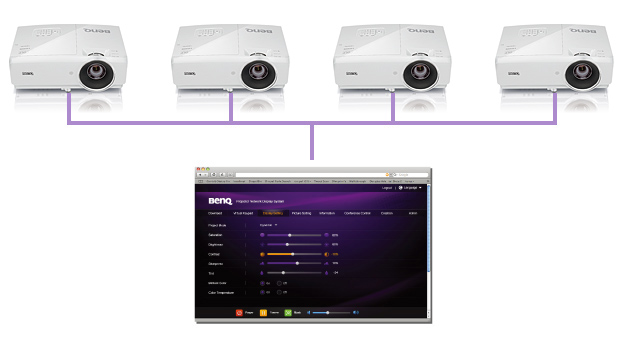

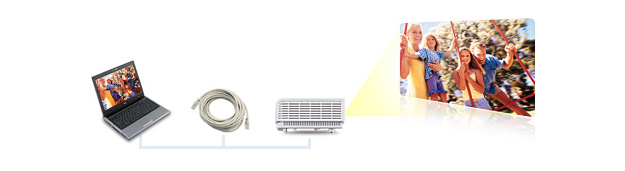

LAN Display

LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature offers one NB to one projector projection display for better content management for discussions, presentations, training and classroom teaching.

Built-in 10W Speaker Power

The MW727 comes with enhanced audio support for your classroom, delivering crisp-clear audio performance with built-in 10W speaker power. Now, teachers can teach with ease and students can learn more effectively.

LAN Control with Crestron RoomView®, PJ-Link and AMX

LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively-offering them full access and control over every projector directly from their workstations. The MW727 offers seamless support for the Crestron RoomView and PJ-Link LAN Control system.

Supports Various 3D Formats

BenQ education projectors are standard-equipped with DLP Link™-supported 3D projection to offer students the same amazing 3D effects seen in 3D movies. The 3D formats supported by the MW727 are 3D field-sequential, 3D frame packing, 3D top-and-bottom and 3D side-by-side. Furthermore, this incredible projector can be connected to a Blu-ray DVD player for even more stunning visual quality.

Various 3D format supported

Closed Captioning

Display subtitles in video content without the need for an external closed-captioning device with the MW727. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.

Thoughtful Teaching Template Design

To make your teaching job easier, BenQ has added the teaching template function to the MW727. Now, with three different line pattern designs to choose from – Letter Formation, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need to draw lines or charts.

BenQ DLP® Projectors︱ Long-Lasting Image Perfection with DLP Technology

Timeless Image Quality:

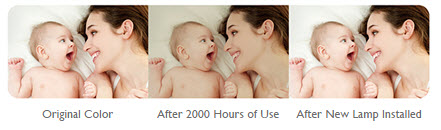

BenQ DLP Projectors are built with enduring enjoyment in mind, ensuring razor-sharp clarity, ultra-readability and true-to-life color for years to come. We use leading-edge DLP Technology to reflect pure light from millions of micro mirrors on a DMD chip through the use of our advanced color wheels. Since the mirrors are colorless and protected within a nearly-sealed engine, BenQ DLP Projectors have no aging problems and are virtually immune to image decay, consistently delivering picture excellence time and time again. In fact, after 2,000 hours of intense usage, inserting a new bulb produces image quality comparable to a brand-new projector.

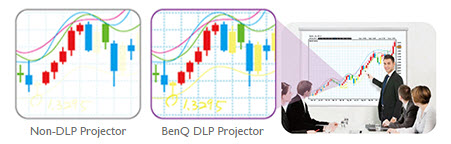

Non-DLP Projector

BenQ DLP Projector

DLP Technology also affords a filter-free engine design for carefree confidence in long-lasting image quality and reduced total cost of ownership. BenQ’s SmartEco™ Technology further boosts contrast performance and image quality endurance while saving up to 70% on lamp power consumption.

Razor-Sharp Clarity with Ultra-Readability:

Enabling a 96% fill factor, DLP Technology supplies pixel circuitry behind the pixel, thereby eliminating the thick dark bezels around individual pixels, which diminish color and detail. A higher fill factor and less black border translate to noticeably purer, more intense color and smoother image quality.

BenQ DLP Projectors also feature high contrast ratios for flawless rendering of small text, fine lines, and dark scene details. Blacks are deeper and overall image quality is more focused and clean. Your presentations will be easily readable and highly effective, even from the back row of a well-lit venue.

Vibrant, True-to-Life Colors:

Even in lit venues, BenQ DLP Projectors achieve the optimal balance of brightness and color accuracy, with BrilliantColor™ Technology additionally boosting true-to-life colors that captivate. BrilliantColor enables up to six-color processing by incorporating the secondary colors Yellow, Cyan, and Magenta along with primary Red, Blue, and Green. From intense hues to elusive mid-tones like aqua blues and light yellows, your every presentation is rendered in pure, living splendor.

(All photos portraying projection scenarios are simulated.)

ecoFACTS Label

ecoFACTS can tell you how eco-friendly BenQ products are!

Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!

ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.

Image Gallery:

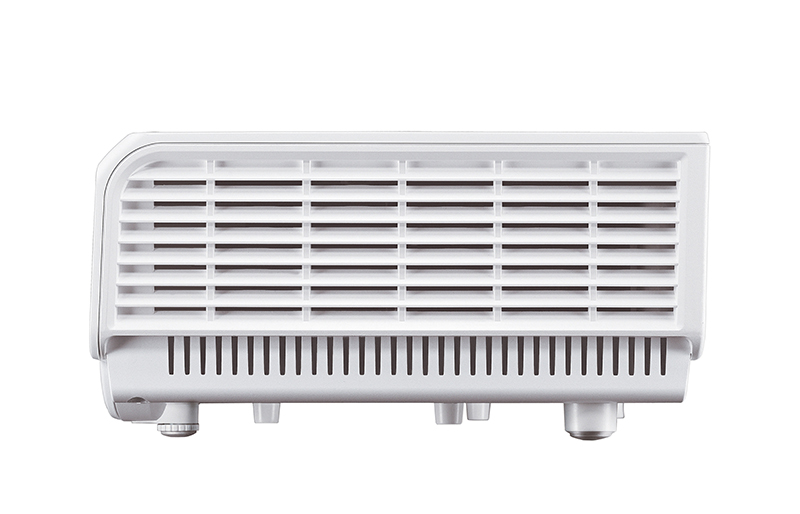

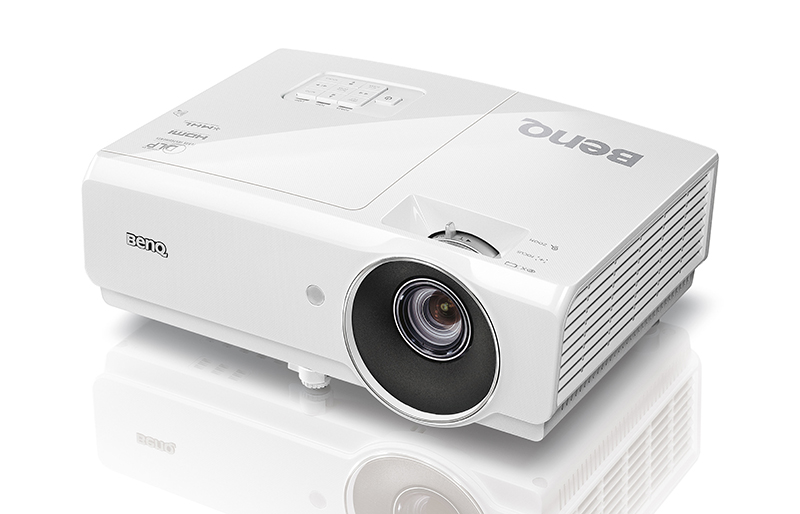

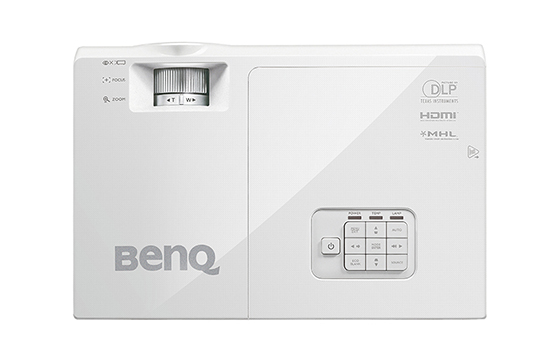

BenQ MW727 Image Gallery

Specifications:

BenQ MW727 Specifications
Projection System	DLP
Native Resolution	XGA (1024 x 768)
Brightness* (ANSI Lumens)	3700 AL
Contrast Ratio	13000:1
Display Color	1.07 Billion Colors
Lens	F=2.5~3.12, f=16~25.46mm
Aspect Ratio	Native 4:3 (5 aspect ratio selectable)
Throw Ratio	1.4~2.3 (Wide 60"±3% @ 1.7m)
Image Size (Diagonal)	60"~300"
Zoom Ratio	1.6:1
Lamp Type	260W
Lamp Mode (Normal/Economic/SmartEco/LampSave/LumenCare)*	2000/3500/5000 hours
Keystone Adjustment	2D, Horizontal +/- 30 degrees, Vertical +/- 30 degrees
Projection Offset	130%±5%
Resolution Support	VGA(640 x 480) to WUXGA(1920 x 1200)*RB-Reduced blanking
Horizontal Frequency	15~102KHz
Vertical Scan Rate	23~120Hz

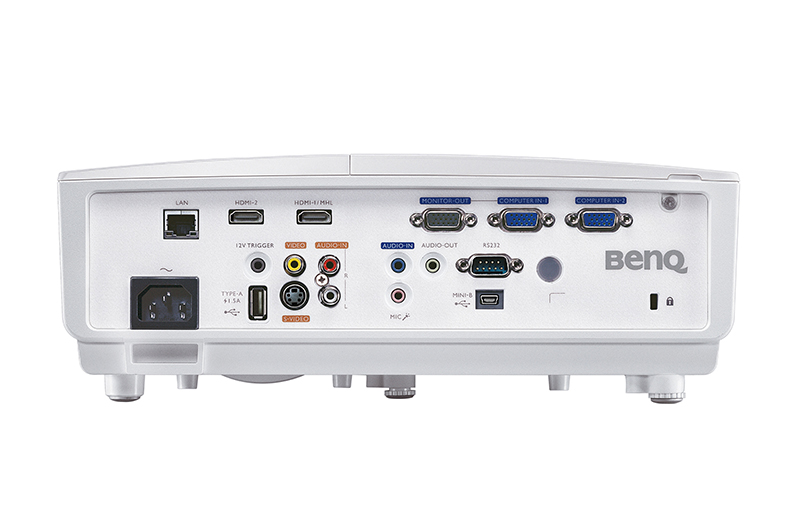

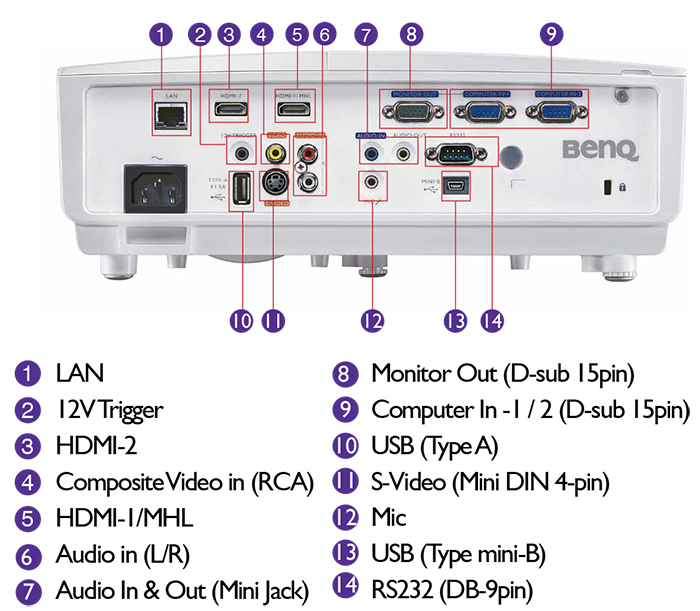

Interface	Computer in (D-sub 15pin) x 2(Share with component) Monitor out (D-sub 15pin) x 1 Composite Video in (RCA) x 1 S-Video in (Mini DIN 4pin) x 1 HDMI x1 Audio in (RCA) x 1 Audio in (Mini Jack) x 1 Audio out (Mini Jack) x 1 Speaker 10W x 1 Microphone (Mini Jack) x 1 USB (Type mini B) x1 (Download & page/down) USB (Type A) x1 (Charger) LAN (RJ45) x 1 (LAN control/LAN Display) RS232 (DB-9pin) x 1 IR Receiver x1
Dimensions (W x H x D mm)	327.3 x 136.7 x 232.8 mm
HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility	NTSC, PAL, SECAM
3D Support and Compatibility	Frame Sequential: Up to 60Hz 720p Frame Packing: Up to 24 Hz 1080p Side by Side: Up to 24Hz 1080p Top Bottom: Up to 60Hz 1080p
Audible Noise (Normal/Economic Mode)	35/33 dBA (Normal/Economic mode)
On-Screen Display Languages	Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Picture Modes	Dynamic/Presentation/sRGB/Cinema/User 1/User 2
Accessories (Standard)	Lens Cover Remote Control w/ Battery Power Cord (by region) User Manual CD Quick Start Guide Warranty Card (by region) VGA(D-sub 15pin) Cable Carry bag
Accessories (Optional)	Spare Lamp Kit P/N: 5J.JCV05.001 Ceilling Mount P/N: 5J.J4N10.001 3D Glasses P/N: 5J.J9H25.001 QP01 Wireless module P/N: 5J.JCK28.A01 Remote Control P/N: 5J.JA606.001
Power Supply	AC100 to 240 V, 50 to 60 Hz
Power Consumption	310W (Normal), 270W(Eco), network standby<6.0W, Standby<0.5W
Power Management Function	Automatically into standby mode less than 200 sec. Automatically into networked standby mode less than 183 sec.
Weight	2.6kg (5.73lbs)

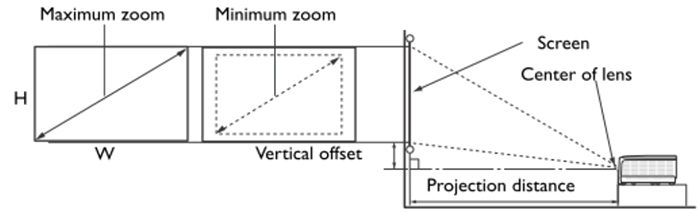

Distance Chart:

Screen Size				Distance from screen (inch)			offset (inch)
Diagonal		W (inch)	H (inch)	Min length	Average	Min length	A (inch) @ Wide mode
Inch	mm
50	1270	42	26	50.8	58.7	66.5	2.9
60	1524	50	31	61.0	70.4	79.8	3.6
70	1778	59	37	71.2	82.2	93.1	4.2
80	2032	67	42	81.4	93.9	106.4	4.8
90	2286	76	48	91.5	105.7	119.8	5.4
100	2540	96	52	101.7	117.4	133.1	6.0
110	2794	93	58	111.9	129.1	146.4	6.6
120	3048	101	63	122.1	140.9	159.7	7.2
130	3302	110	68	132.2	152.6	173.0	7.8
140	3556	118	74	142.4	164.4	186.3	8.4
150	3810	127	79	152.6	176.1	199.6	9.0
160	4064	135	84	162.8	187.9	213.0	9.6
170	4318	144	90	172.9	199.6	226.3	10.2
180	4572	152	95	183.1	211.4	239.6	10.8
190	4826	161	100	193.3	223.1	252.9	11.4
200	5080	169	106	203.5	234.8	266.2	12.0
250	6350	212	132	254.4	293.6	332.8	15.0
300	7620	254	159	305.2	352.3	399.4	18.0

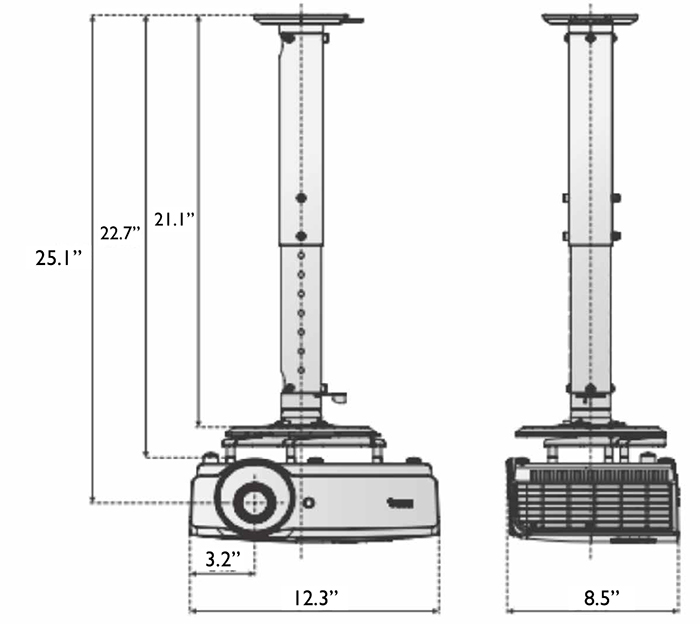

Ceiling Mount Chart:

Units: inch

Documentation:

Download the BenQ MW727 Data Sheet (PDF).
